- Place of Origin:CN;
- Product name: Wifi Doorbell
- Brand Name:OEM
- Model Number:X3 Push only Doorbell set
Hi Welcome To Our Page!
ShenzhenMicroStarElectronicTechnologyCo.,Ltd.- 18 Years Experience in producing Camera products & OEM Design.
We Are Warmly Welcome Your Visit Our Factory.
More Models, Please feel free to contact.
SPECIFICATION:
Sensor: 1/4"CMOS Sensor
Resolution: VGA
Lens: 2.8mm @ F2.0
Angle: Diagonal 120 degrees
Video stream: transmission transmission 640*360/30fps
CMOS: Support auto white balance, gain control, backlight compensation system Lite OS
Day/Night: IR-CUT automatic switch
Infrared distance: 850nm infrared, effective distance 5m
Network configuration: one key WIFI setting
PIR human detection: Support PIR detection(Optional)
Audio code standard: AAC & G.726
Audio input/output: -38dB Microphone / Built-in speaker
Video mode: manual recording, alarm recording
Network protocol: TCP/IP,HTTP,TCP,UDP,SMTP,DHCP,DNS,P2P
Wireless: WIFI 802.11b/g/n 2.4Ghz
Passive human infrared detection: not support
Adaptive code rate: support
Two-way intercom: support full-duplex real-time call
Sleep time: 15S
Voice phone call: support
Remote wake-up: not support
Mobile app: X Smart Home
Power supply: DC5V
Working temperature: -10℃ ~+50℃
Working humidity: ≤80%RH

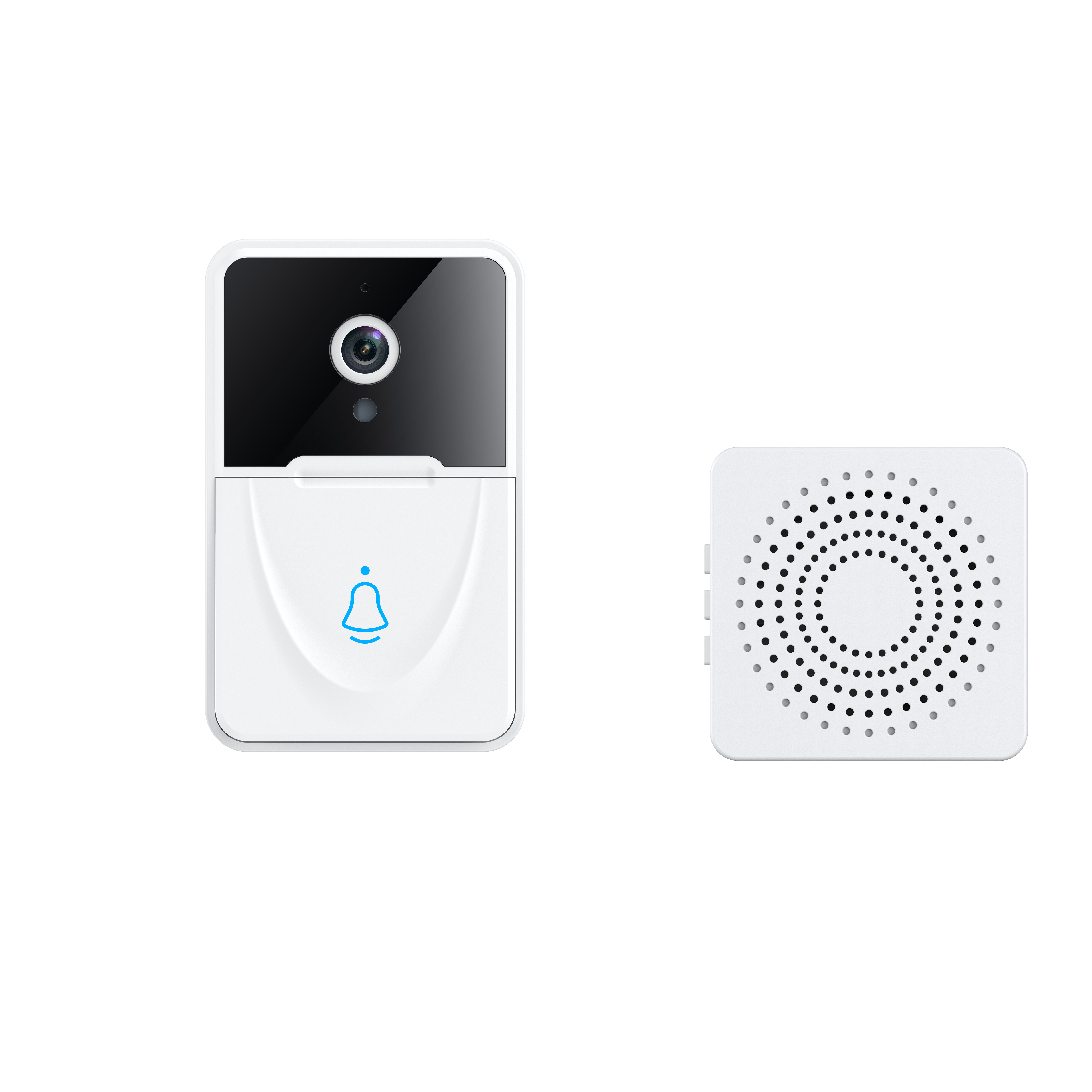

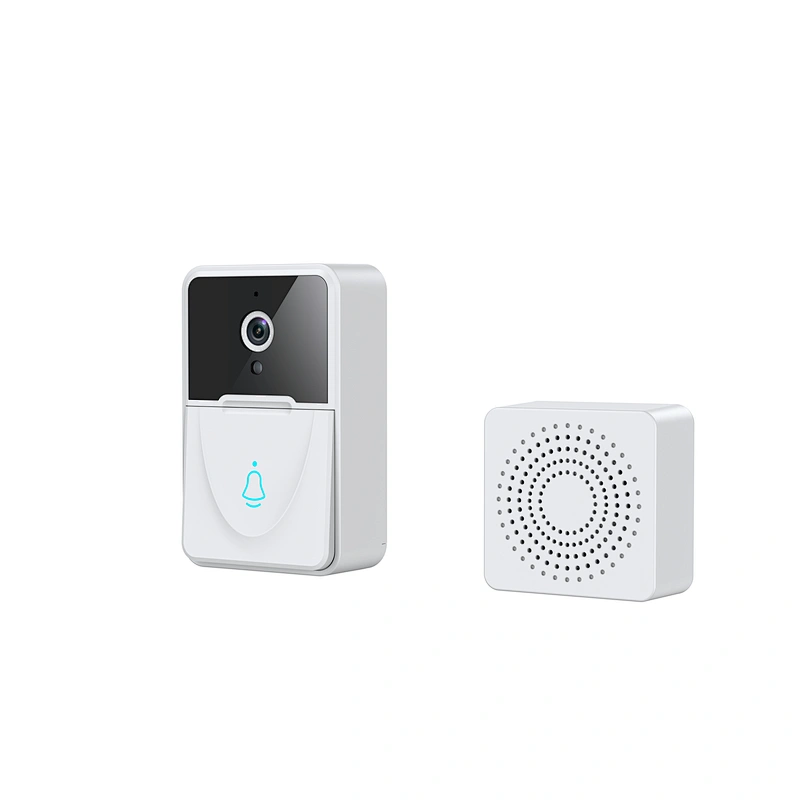

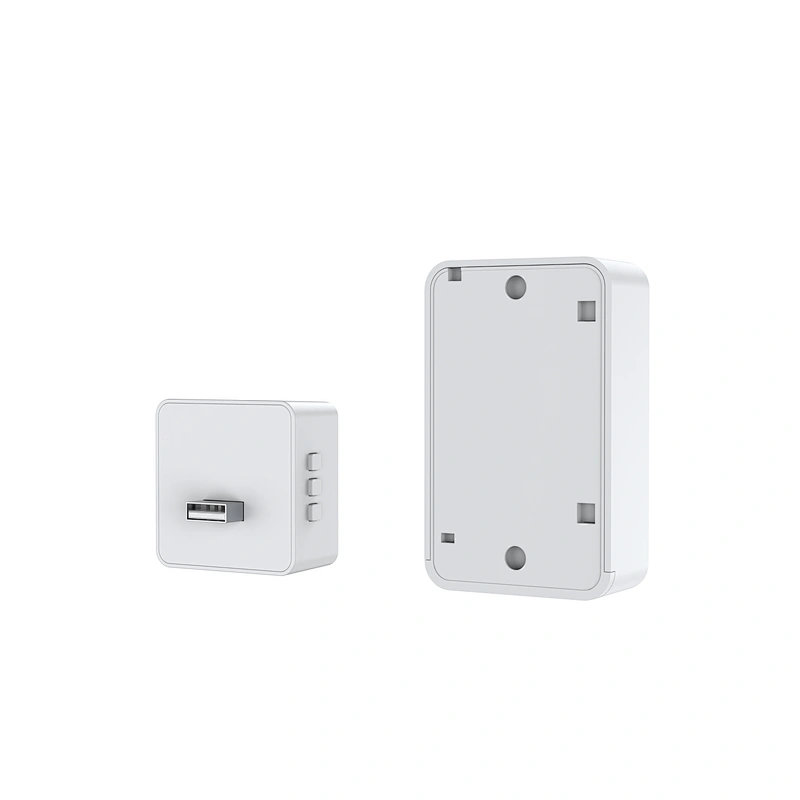

WIFI VIDEO CAMERA & DOORBELL + Chime
FUNCTIONS:
【LOWER POWER AND ULTRA LONG STANDBY TIME】
【TWO-WAY AUDIO】
【SMART NIGHT VISION & Multiple-Account Viewing Sharing】
【EASY TO INSTALL with SET UP & SERVICE GUARANTEED】
【1-year warranty】
Package Includes
1 x Doorbell Camera & 1 x English User Manual & 1 x Screw bag
18650 Batteries(Optional), Chime (Optional)
Attention:
1.Pls recharge the device & batteries before working, because low power may influence the function of doorbell.
2.The device is only support 2.4GHz network, NOT for 5GHz network. If connect failed, press the “RESET” button in the back.
3.Notifications only can receive when shut down the APP and working background or when someone press the button.
4.If you want to get the ring sound loudly in side, pls buy a extra chime to set up in the home.
5.When you setting up, pls don’t mute you phone, because connect wifi should be based on sound wave, also pls keep the doorbell in the range of the router.
6.If you want action storage, pls add a SD card or choose cloud storage sevice on app.
